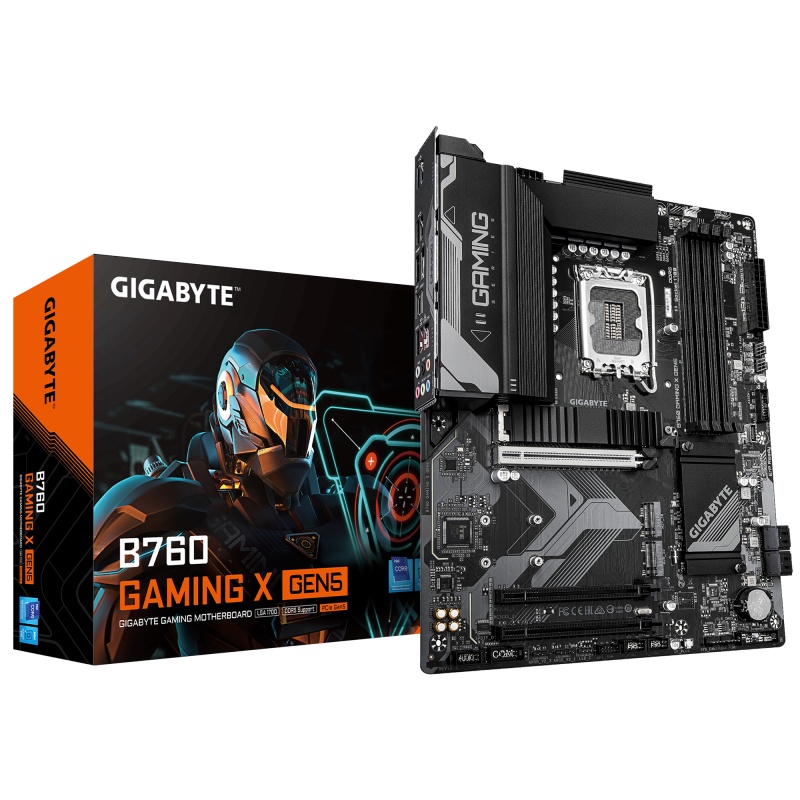

MB Gigabyte B760 GAMING X GEN5
Cod produs - SKU
B760 GAMING X GEN5
NOU
14%
759,00 RON
886,52 RON
Selecteaza cantitate
Cum te putem ajuta?
Detalii
SKU
B760 GAMING X GEN5
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
Memory slots type
DIMM
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2304 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
4400,4800,5200,5600 MHz
Supported memory clock speed (max)
5600 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
RAID support
Yes
RAID levels
0, 1, 5, 10
MB-Format
ATX
RAM-Slots
4
MB-Socket
1700
PCI-Ex16
2
USB3
4-8
PCI-Ex1
0
S/PDIF out connector
Yes
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPort version
1.2
DisplayPorts quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Products per shipping (inner) case
1 pc(s)
Weight
1.56 kg
Country of origin
China
Product colour
Dark brown
Component for
PC
Package depth
270 mm
Package height
80 mm
Depth
244 mm
Width
305 mm
Height
35 mm
Package width
335 mm
Package weight
1.8 kg
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Warranty period
3 year(s)
Maximum internal memory
256 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760
USB 2.0 ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Audio Chip
Realtek ALC897
Bundled software
Norton Internet Security (OEM version)
PCI
0
Serial-or-Paralel
No/No
Cooling type
Passive
Onboard-CPU
No
Wi-Fi
No
