MB GIGABYTE B650 UD AX

Cod produs - SKU B650 UD AX
10%

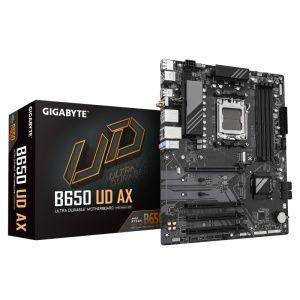

  • MB GIGABYTE B650 UD AX - Img 1

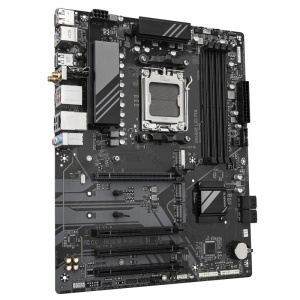

  • MB GIGABYTE B650 UD AX - Img 2

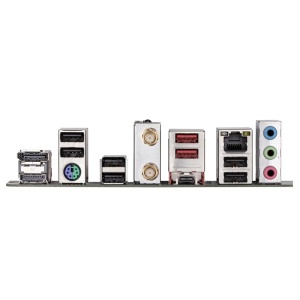

  • MB GIGABYTE B650 UD AX - Img 3

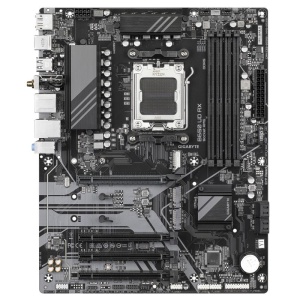

  • MB GIGABYTE B650 UD AX - Img 4
  • MB GIGABYTE B650 UD AX - Img 5
814,00 RON 907,19 RON
Stoc limitat
Transport Gratuit
Adauga la Favorite
Paypo logo
Cumpara acum, plateste in 30 de zile
Cum te putem ajuta?
Suna-ne: 0727862880 (Luni-Vineri, 09:00 - 17:30)
Cere detalii
Trimite-ne un mesaj
Solicita publicare produs in SICAP Posteaza review

Poate ți-ar plăcea

Cumpărate frecvent împreună

Detalii

SKU
B650 UD AX
Categorii
Placi de baza
Brand
GIGABYTE
Memory slots type
DIMM
PCI Express x16 (Gen 4.x) slots
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
PCI-Ex16
4
USB3
4-8
PCI-Ex1
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
DisplayPorts quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Products per shipping (inner) case
1 pc(s)
Weight
1.95 kg
Country of origin
China
Product colour
Brown
Component for
PC
Package depth
270 mm
Package height
80 mm
Depth
244 mm
Width
305 mm
Height
35 mm
Package width
335 mm
Package weight
2.2 kg
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Warranty period
3 year(s)
Maximum internal memory
256 GB
WLAN controller model
Realtek RTL8851BE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B650
USB 2.0 ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Audio Chip
Realtek ALC897
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
