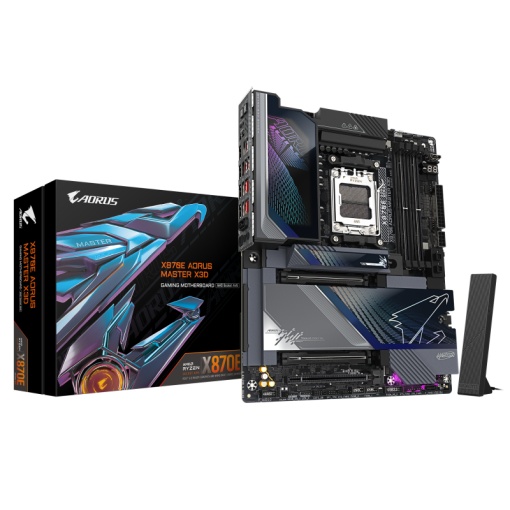

GIGABYTE X870E AORUS MASTER X3D
Cod produs - SKU
X870E A MASTER X
15%
2.844,00 RON
3.362,81 RON
Selecteaza cantitate
Cum te putem ajuta?
Detalii
SKU
X870E A MASTER X
Categorii
Brand
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
Number of temperature sensor headers
2
PCI Express x16 (Gen 5.x) slots
2
Line-in
Yes
Memory slots type
DIMM
PCI Express x16 (Gen 4.x) slots
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
5
1st M.2 largest key size
2580
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
PC health monitoring
CPU, Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2304 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
5
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
2
Number of chassis fan connectors
6
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Supported memory clock speed (max)
9000 MHz
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8126, Realtek RTL8127
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
2
Number of storage drives supported
7
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID support
Yes
RAID levels
0, 1, 5, 10
Chassis intrusion connector
Yes
USB 3.2 Gen 2x2 connectors
1
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
S/PDIF out port
Yes
USB4 Gen 2x2 ports quantity
2
Digital audio optical out
1
HDCP
Yes
Headphone outputs
1
HDCP version
2.3
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
DisplayPort version
1.4
Windows operating systems supported
Windows 11 x64
Products per shipping (inner) case
1 pc(s)
USB 3.2 Gen 2x2 Type-C ports quantity
1
Weight
3.78 kg
Country of origin
Taiwan
Product colour
Black
Component for
PC
Package depth
310 mm
Package height
92 mm
Depth
244 mm
Width
305 mm
Height
35 mm
Package width
340 mm
Package weight
4.33 kg
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Battery capacity
220 mAh
Warranty period
3 year(s)
Maximum internal memory
256 GB
WLAN controller model
MediaTek MT7927
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD X870E
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC1220-VB/ESS 9118
Bundled software
Norton Internet Security (OEM version)
BLUETOOTH
Yes
Cooling type
Passive
Wi-Fi
Yes
