APC Smart-UPS SRT 2200VA 230V

Cod produs - SKU SRT2200XLI
18%
10.798,00 RON 13.182,58 RON
Stoc limitat
Transport Gratuit
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0727862880 (Luni-Vineri, 09:00 - 17:30)
Cere detalii
Trimite-ne un mesaj
Solicita publicare produs in SICAP Posteaza review

Descriere

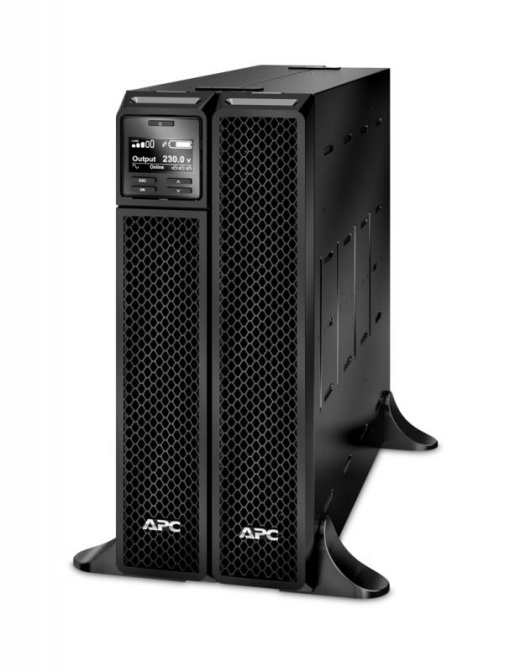

APC Smart-UPS SRT 2200VA 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

Output power capacity

1.98kWatts / 2.2kVA

Output Connections

(2) IEC 60320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(8) IEC 60320 C13 (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

Cord Length

2.4meters

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Detalii

SKU
SRT2200XLI
Categorii
UPS
Brand
APC
Cold start
Yes
Hot-swap battery
Yes
Automatic battery test
Yes
SmartSlot
Yes
Number of output IEC jumpers
2
Bracket
Yes
Software CD
Yes
Typical backup time at half load
11.6 min
Audible alarm(s)
Yes
Surge energy rating
340 J
Auto-restart
Yes
Surge protection
Yes
Crest factor
3:1
Nominal input voltage
230 V
Nominal output voltage
230 V
International Protection (IP) code
IP20
Warranty card
Yes
Efficiency
92.2%
Quick installation guide
Yes
Web-based management
Yes
Cable length
2.44 m
Number of batteries supported
1
Packaging content
Power cord Removable support feet
Display type
LCD
Input operation voltage (max)
275 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Input frequency
40 - 70 Hz
UPS topology
Double-conversion (Online)
Output operation voltage (min)
220 V
Output power
1980 W
Noise level
55 dB
Output power capacity
2.2 kVA
Input operation voltage (min)
100 V
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
Serial interface
Yes
Serial interface type
RJ-45
Typical backup time at full load
3.9 min
Emergency Power Off (EPO)
Yes
Waveform
Sine
AC outlets quantity
10 AC outlet(s)
Rackable
No
UPS-Management
Yes
Products per pallet
12 pc(s)
Battery life (max)
5 year(s)
LED indicators
Yes
Certification
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Interface
SmartSlot
Operating temperature (T-T)
0 - 40 C
Weight
2.5 kg
Package depth
810 mm
Storage temperature (T-T)
-15 - 45 C
Package height
246 mm
Depth
58.4 mm
Width
85 mm
Height
43.2 mm
Package width
599 mm
Package weight
30.8 kg
Harmonized System (HS) code
85078000
Battery technology
Sealed Lead Acid (VRLA)
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Cables included
USB cable
Battery capacity
367 VAh
Storage relative humidity (H-H)
0 - 95%
Battery recharge time
3 h
Sustainability certificates
ENERGY STAR, Green Premium
Total carbon footprint (kg of CO2e)
3634.43
Form factor
Rackmount/Tower
